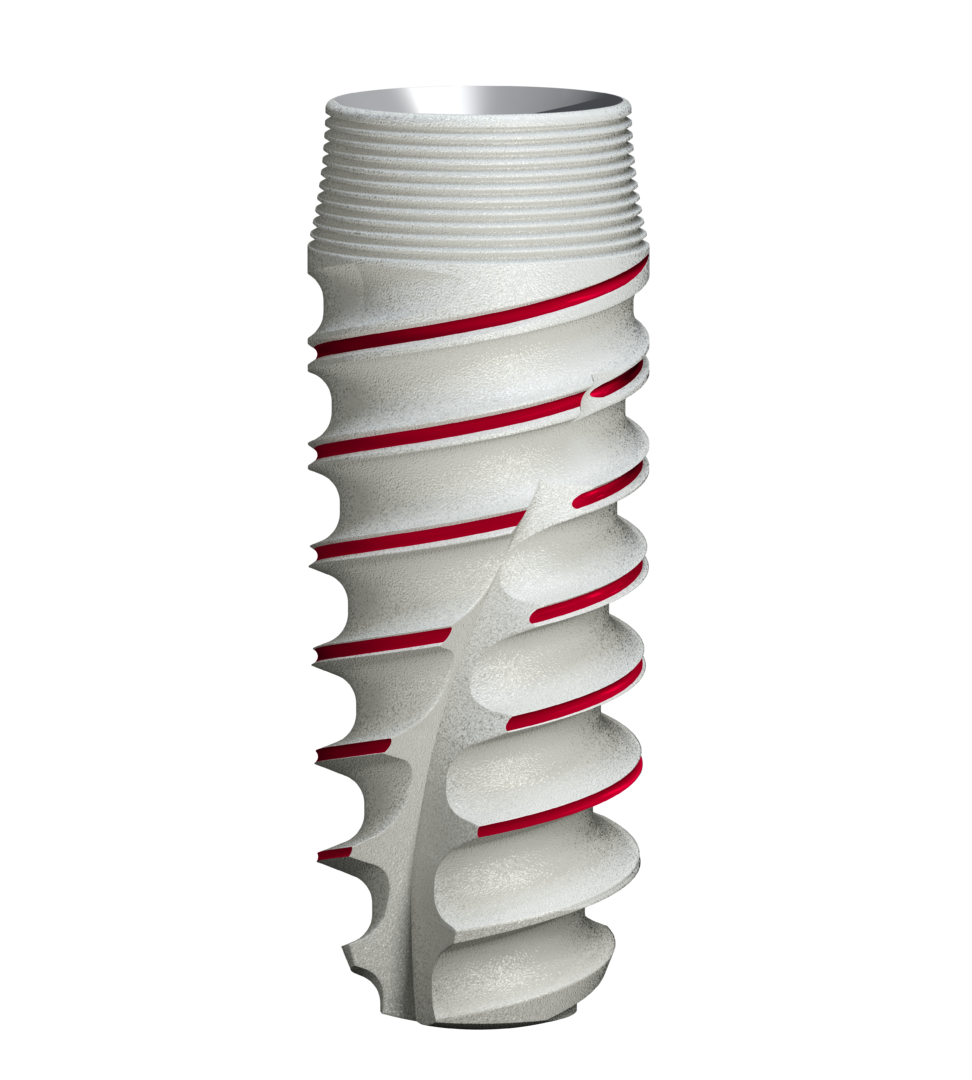

Ultimate Precision Implant (ULTTM)

The ULTTM Ultimate Precision Dental Implant System features a patented Reverse Concave Neck (RCN) with micro-threads that favor an a-traumatic dental implant-bone contact that resists axial loads. This decreases the pressure on the cortical bone while avoiding vascular compression that preserves the peri-implant marginal bone and soft-tissue. The dental implant system features an internal hexagon connection, the most widely used in the marketplace, eliminating the need to learn something new.
Struct1 Ps (1)

Implant Body

  • There is high initial stability established even in compromised bone situations.
  • The expanding tapered dental implant body with a self-tapping progressive double-thread design gradually condenses the bone enhancing initial stability.
  • The double-threads result in an efficient insertion rate of 2.2 mm per revolution of the dental implant.

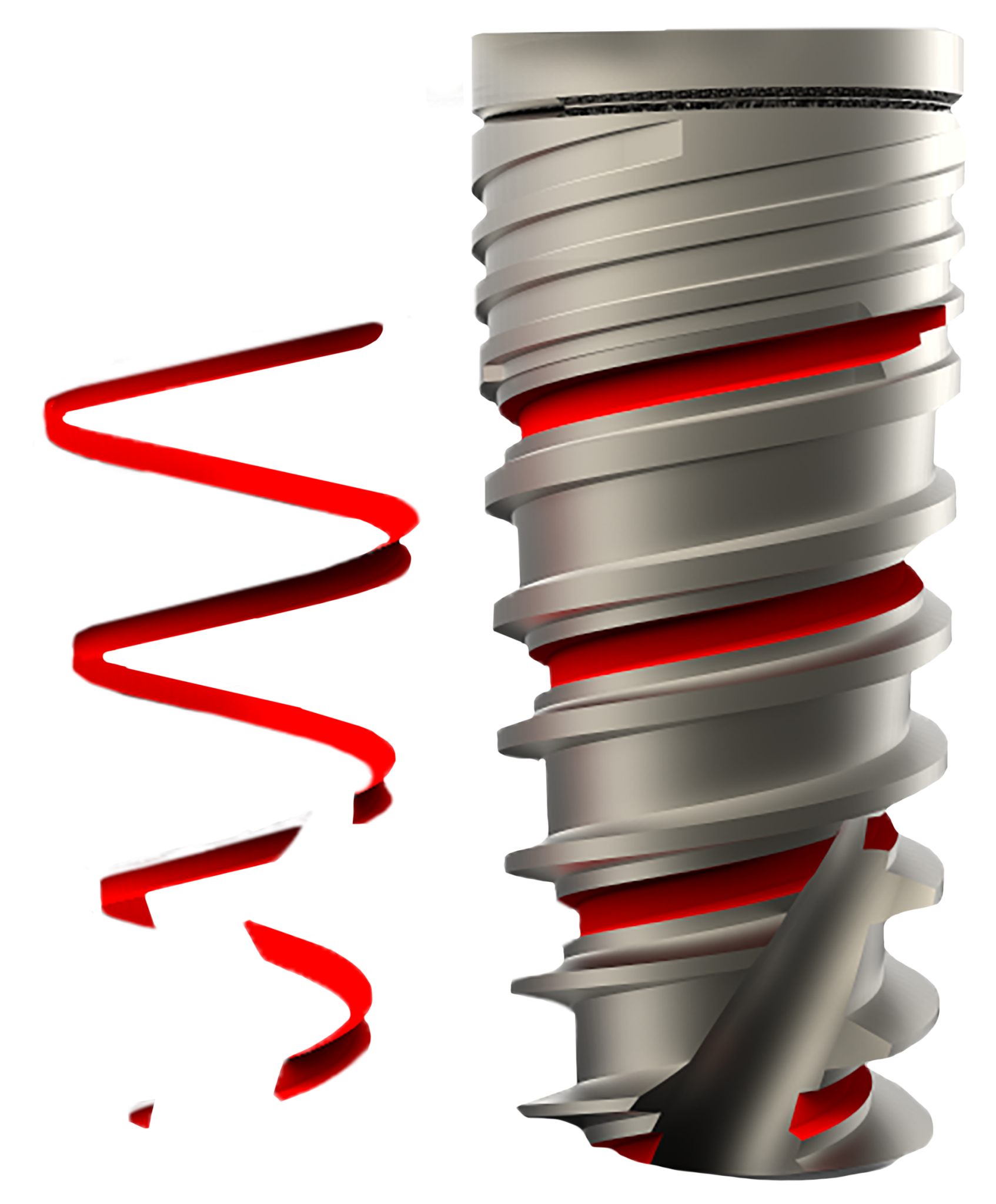

Assisted Osseointegration

  • The unique Spherical Helix Chamber forms a dedicated space for the collection of blood and bone fragments from the osteotomy preparation.
  • These materials can form a scaffold or matrix to assist with osteoconduction and new bone formation.
Struct1 Ps (1)

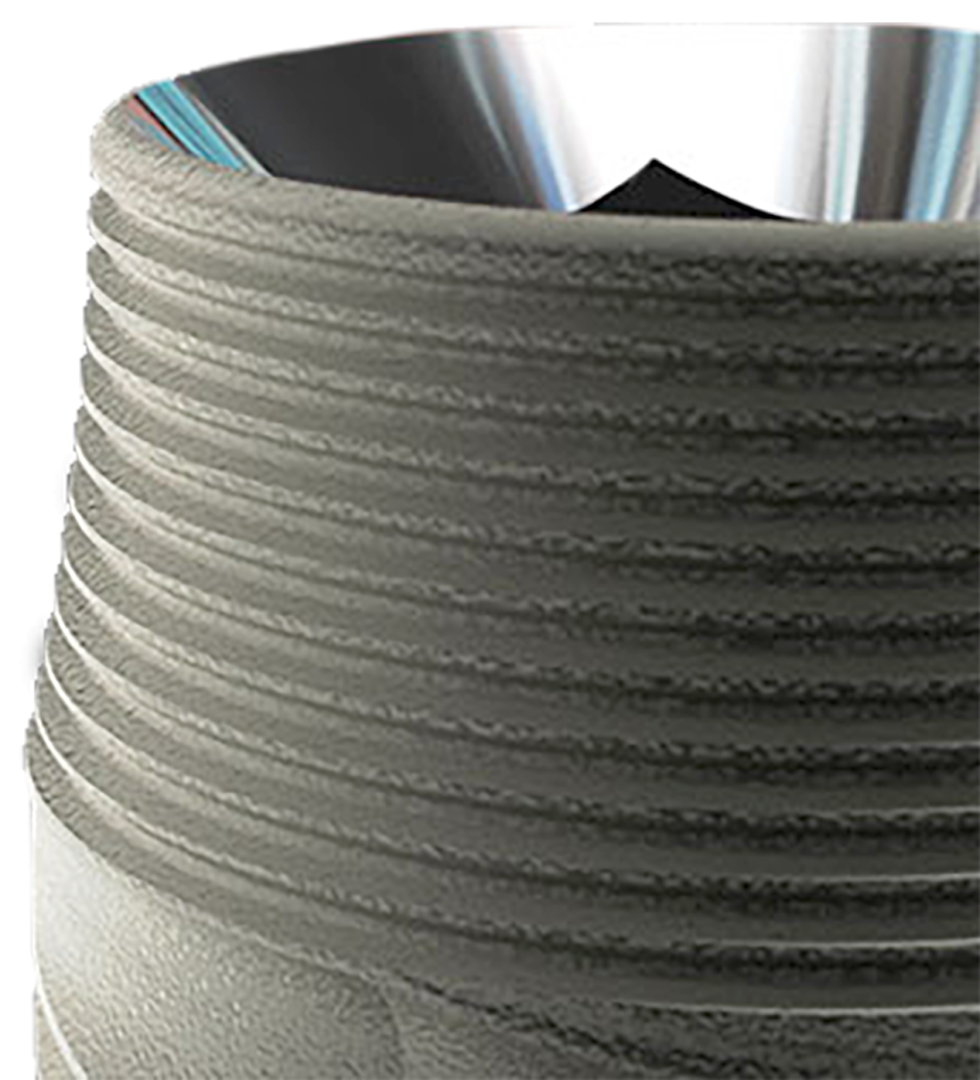

Helical Apico-Coronal Slots

  • The micro-threads on the ULTTM dental implant neck apply biomechanical stimulation to the cortical bone, stimulate bone tropism and enhance the speed and quality of osseointegration.
  • They also increase the ability of the dental implant to resist axial loads while providing mechanical stimulus that helps preserve the peri-implant marginal bone and soft tissue.

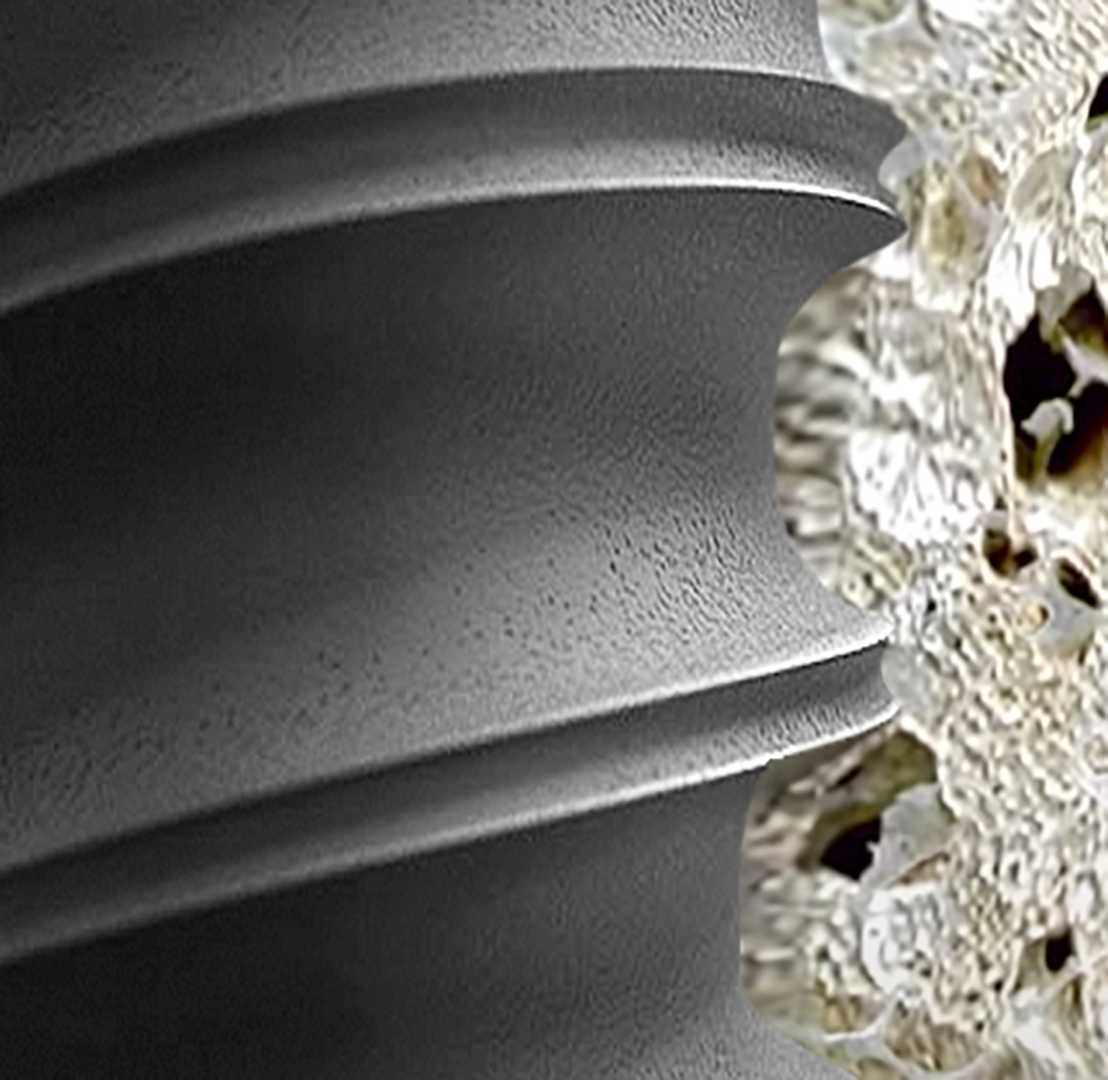

Progressive Threads

  • The threads with the concave profile have an apico-coronal incremental thickness and Double Stressless Sharp Thread (DSST) that, together with the descending concave profile between the threads, generates a gentle and progressive horizontal and vertical bone compaction.
  • This preserves the vascularity of the osteotomy while maintaining the peri-implant marginal bone and soft-tissue.
Struct1 Ps (1)

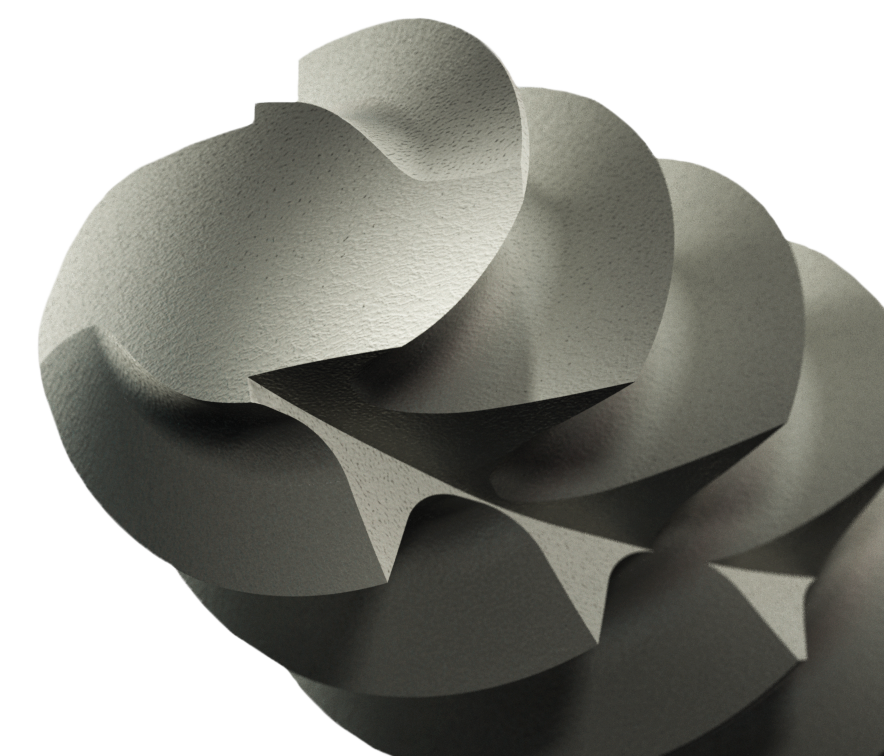

Cutting Apex Edge

  • Depending on the bone type and quality, the deep and sharp apical blades with a progressive thickness add a self-drilling and self-tapping capacity to the ULTTM dental implant.
  • The rounded apex improves the ease of insertion, allowing mild directional refinement during the initial stages of dental implant insertion.

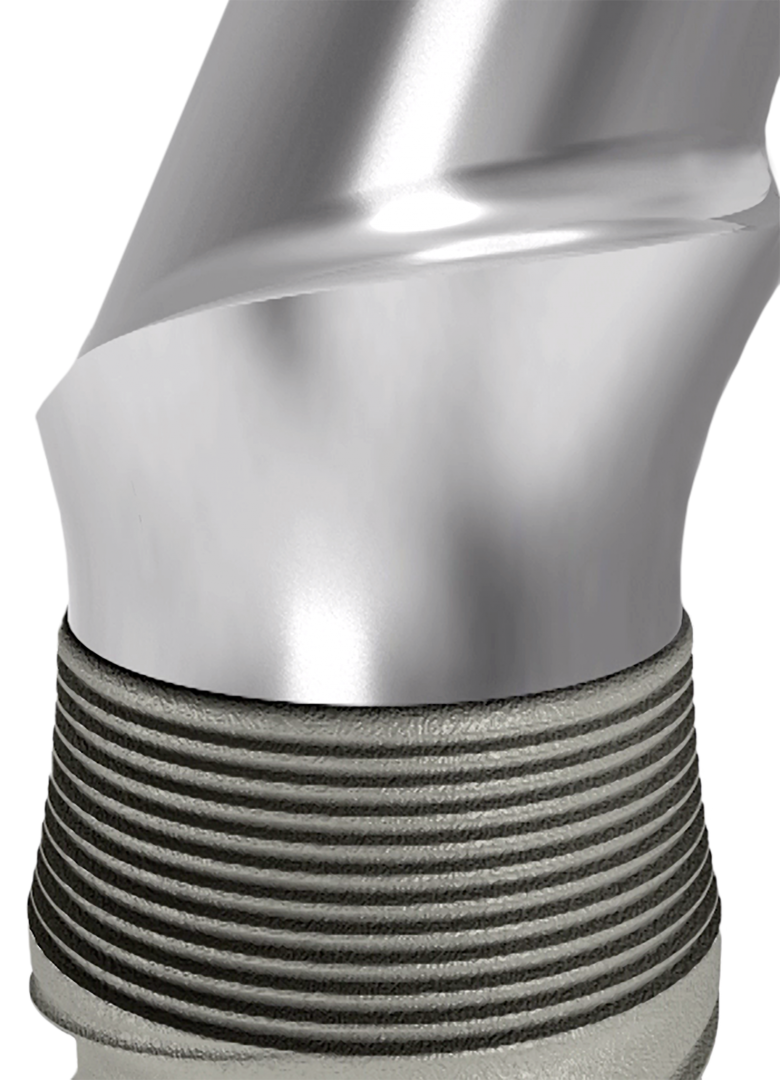

MolecuLockTM & Platform Switching

  • The MolecuLockTM biomechanical dental implant-abutment seal is designed to reduce micro-gaps to less than 0.5 microns. This reduced micro-gap is too narrow for bacteria to penetrate.
  • This effective MolecuLockTM seal prevents the egress of bacteria. This protects crestal bone and soft tissue from the risks of peri-implantitis, ensuring long-term dental implant success with maximum esthetics.
  • The platform-switching achieved with the ULTTM dental implant-abutment connection leaves a constant horizontal progressive space that prevents coronal bone resorption and promotes soft-tissue growth.
  • There is one 2.45 mm dental implant-abutment internal hexagon connection for all diameters, simplifying the restorative platform with fewer parts and pieces to inventory.
