Abutments

The Ditron Dental comprehensive restorative solutions feature a 2.45 mm dental implant-abutment internal hexagon connection for all implant diameters and lengths, simplifying the restorative platform with fewer parts and pieces to inventory. This ensures an abutment solution for all your restorative needs, from a cement-retained single tooth restoration to a full arch screw-retained restoration or overdenture. CAD/CAM Digital Workflow solutions are also available.

Quality & Compatibility

  • Our in-house high precision turning, milling and micro-machining ensure that all abutments are delivered with the highest quality and precision. Biocompatible medical Grade 23 Titanium alloy is used for all Ditron Dental long-term restorative solutions.
  • Abutments, impression copings and analogs fit all standard 2.45 mm internal hexagon connections. Using Ditron Dental’s restorative parts will ensure the perfect dental implant-abutment MolecuLockTM connection.
  • The same dental implant-abutment connection platform is shared by both the MPITM and ULTTM dental implant diameters from 3.3 to 6 mm.

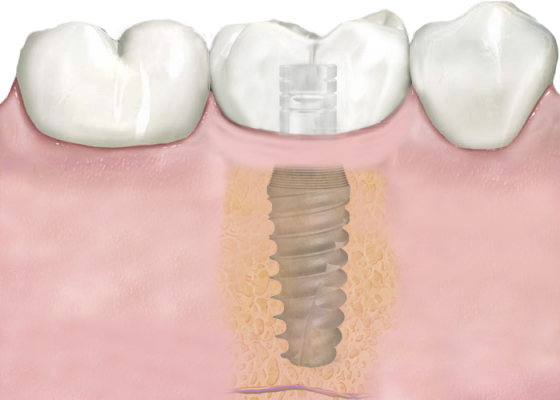

Struct1 Ps (1)

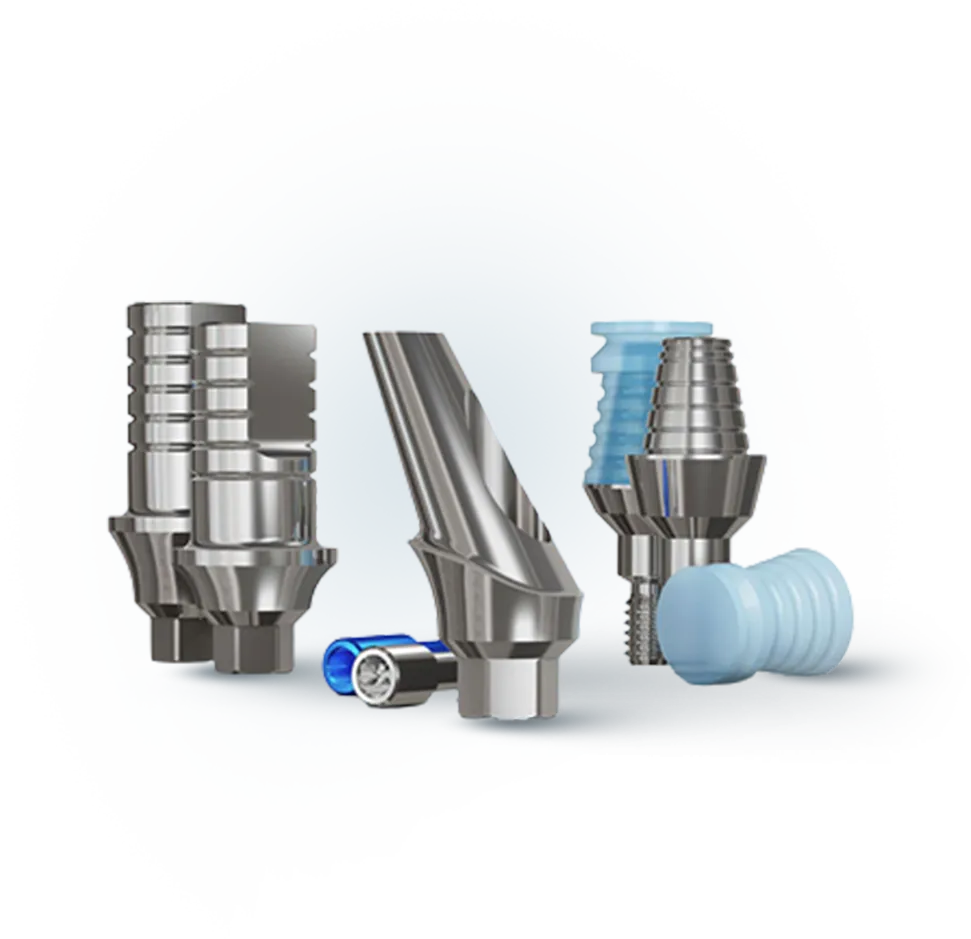

Cement-Retained Restoration Abutments

Select these abutments for single tooth and multi-unit cemented restorations. The abutment connections are either engaged or non-engaged and utilize the MolecuLockTM biomechanical dental implant-abutment seal. There are straight and angulated abutments that vary in diameter from 3.8 to 5.6 mm and in length from 6.0 to 11.5 mm, with collar heights ranging from 1 to 4.0 mm. The appropriate abutment screw is supplied with each abutment.

  • Angulated Ti Abutment 15° & 25° with 8.5 & 11.5 mm lengths
  • Anatomic Ti Angulated Abutment 15° & 25° with 1-3 mm collar heights
  • Slim Straight Ti Abutment Ø 3.8 mm with 6 & 8.5 mm lengths
  • Straight Ti Abutment Ø 4.5 mm with 8.5 & 11.5 mm lengths
  • Straight Ti Anatomic Abutment Ø 5.6 mm with 1-4 mm collar heights
  • Straight & Angulated (15° & 25°) Casting Abutments both Hexagon
Order Now

Healing Abutments (Caps)

The Ditron Dental Standard and Anatomical Healing Abutments (Caps) were designed to guide and sculpt the gingival tissue by replicating the anatomy of the original root form. This provides a natural and aesthetic emergence profile for the final restoration. The abutments are available in various diameters and collar heights.

  • Anatomic Narrow Platform Ø 3.8 mm with 3 & 5 mm collar heights
  • Anatomic Standard Platform Ø 4.6 mm with 2-7 mm collar heights
  • Anatomic Wide Platform Ø 6 mm with 3 & 5 mm collar heights
  • Cylindrical Ø 4.6 mm with 2-7 mm collar heights
Order Now
Learn More
Struct1 Ps (1)

Impression Copings & Analogs

The Impression Copings (Transfers) are designed to transfer the dental implant’s x, y and z position and hex orientation as well as to capture the soft tissue profile. The Impression Copings are available for both the closed and open tray transfer impression technique. Tight accuracies are maintained with all the Impression Coping parts to ensure that the dental implant position, recorded by the Impression Coping will be accurately reproduced with the Analogs on the laboratory model and the final restoration will be aligned exactly as intended.

Order Now

Overdenture Abutments

Ditron Dental provides two Overdenture Abutment solutions. The Ball Abutment and the Liberator® Abutment. The Liberator® Abutment’s low vertical profile and innovative swivel capability, increases the resilience and tolerance for the high occlusal forces during chewing. Both abutments have a variety of retention options.

  • The Ball Abutments are available in 0.5, 2, 3, 4, 5 & 6 mm heights
  • The Liberator® Abutments are available in 0.5, 1.5, 2.5, 3.5 & 4.5 mm heights.
Order Now
Learn More
Struct1 Ps (1)

Screw-Retained Restoration Abutments

There are Straight and Angulated Screw-Retained Restoration Abutments that vary in diameter from 4.7 to 4.8 mm with collar heights ranging from 0.5 to 5.0 mm. The dental implant-abutment connections are either engaged or non-engaged and utilize the MolecuLockTM biomechanical seal. The Straight Abutments are designed for multi-unit restorations and removable or fixed overdenture bar solutions. The Angulated Abutments provide an innovative and low-profile solution for dental implants placed at challenging angles. The appropriate abutment screw is supplied with each abutment.

  • Angulated Multi-Unit Abutments with Hexagon Connection 17° with 2 & 3 mm collar heights
  • Angulated Multi-Unit Abutments with Hexagon Connection 30° with 3 & 4 mm collar heights
  • Screw-Retained Abutments with Hexagon Connection and 0.5, 1.5 & 2.5 mm collar heights
  • Straight Multi-Unit Abutments Ø 4.8 mm with Cylinder Connection and 1-5 mm collar heights
Order Now

Temporary Abutments

The Temporary Abutments are non-engaged and designed for immediate loading procedures on bridges. This allows for immediate aesthetics and function following dental implant placement. Assuming the initial stability of the dental implant, it also avoids a second stage surgery, reducing chair time for both the patient and the clinician. Three different plastic sleeves are available to fabricate the temporary bridge restoration (Hard, Standard & Soft).

  • Temporary Abutments with Cylindrical Connection and 1, 2, 3, 5 & 7 mm collar heights
Order Now

Resources

Visit our digital resource library to review and download product catalogs, brochures, technique manuals, videos, articles, and much more.

Learn More

Education & Events

We place a premium on the science behind our products and are at the forefront of education with live surgery courses from 1-day surgical to 3-day live patient courses.

Learn More

Lifetime Warranty

Ditron Dental provides a lifetime warranty for all its dental implants and prosthetic components when used in accordance with the supplied Instructions for Use (IFU) and the company’s protocols.
