CAD/CAM
Simplify and Streamline the Complex Process
of Fabricating Dental Implant Restorations
Scan Body

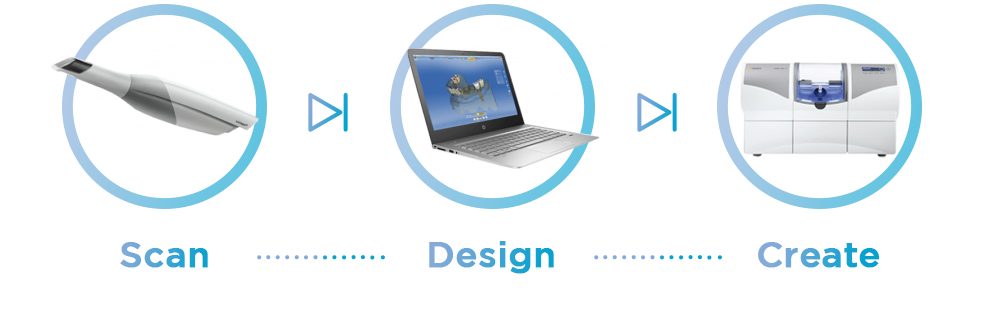

The Scan Body is the first step in the digital workflow. It is used intra-orally or with a desktop scanner to accurately digitally capture the x, y, z position of the dental implant in relationship to the remaining teeth and soft tissue. The digital scan is uploaded to the CAD/CAM software to plan and fabricate the final restoration. Ditron Dental is compatible with several CAD/CAM programs including 3Shape, Sirona, exocad and dental wings.
- Scan Body
- Scan Body Multi-Unit Ø 4.8 mm & Length 7 mm
- Scan Body Ti-Base Ø 3.8 mm & Length 10 mm

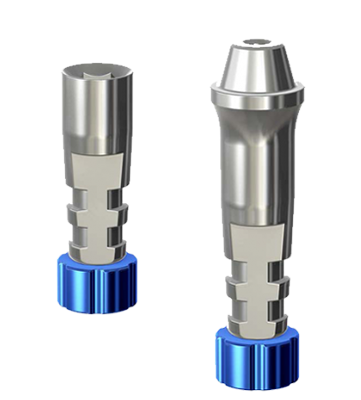

Digital Analogs
The Ditron Dental Digital Analogs were specifically designed for a 3D printed model. It is an integral part of the fully digital procedure, from intra-oral scanning, to virtual dental implant planning, placement and digital restoration printing. The Digital Analog ensures the exact positioning in a 3D printed model.
Ti-Base
Ditron Dental’s Ti-Base has a dual function serving as both an Adaptor and Scan Abutment. It has an integrated 2.45 mm internal hexagon MolecuLockTM connection, insuring a tight dental implant-abutment seal. The Ti-Base supports both single tooth engaged and multi-unit non-engaged cemented and screw-retained restorations. Each Ti-Base includes two identical abutment screws, one for laboratory use and one for the final restoration.
Adaptor: The Ti-Base is an Adaptor between the CAD/CAM manufactured restoration and the dental implant. A superstructure is glued onto the T-Base that can be adjusted as required for aesthetics and function.
Scan Abutment: The Ti-Base is a Scan Abutment used for the digital registration of the dental implant position either intra-orally or with a desktop scanner. The Ti-Base is connected using the supplied abutment screw. A Scan Body is mounted on the Ti-Base and then a digital scan is taken to record the x, y, z position of the dental implant.
- Ti-Base Cylinder Non-Engaged with Collar Heights 0.6, 1.5 & 2.5 mm
- Ti-Base Hexagon Engaged with Collar Height 0.6, 1.5 & 2.5 mm
- Ti-Base Multi-Unit

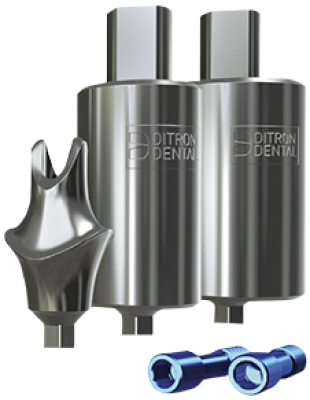

Pre-milled Ti-blanks
Ditron Dental’s Pre-milled Ti-blanks are used with milling equipment to produce original one-piece customized titanium abutments. The Ti-blanks include a pre-manufactured MolecuLockTM 2.45 mm internal hexagon dental implant-abutment connection. There is a Ti-blank with a non-engaged connection for multi-unit restorations. The abutment screw is included.
- Pre-milled Ti-blank Engaged Ø 9 & 12 mm
- Pre-milled Ti-blank Multi-unit Non-Engaged Ø 6 mm
